- Diameter Range : DN50 – DN300
- Comply to JKR 20200-0048-99
- Sleeve & Flanges : Ductile Iron To BS EN 1563 Gr. 500/7
- Bolt, Nut & Washer : Hot-Dip Galvanized / Stainless Steel
- Rubber Gasket : EPDMBS2494TypeW / MS672:99 Other Suitable Rubber Gasket Qualities for Aggressive Media Are Available Upon Request
- Coating : Coated with Hot Fusion Bonded Epoxy Paint Other Coating Will Be Available Upon Request
- Working Pressure : Water ~ 16 Bar (Test Pressure 25 Bar)
- Note : Other Materials, Sizes and Dimensions On Request
TEK Universal coupling are designed to joint plain ended side pipe of various outside diameters pipes with the same or different nominal bore Mild Steel, Ductile Iron, uPVC, PE, Cast Iron and Asbestos Cement.
| Description | Material |
| Bolt |
Hot-Dip Galnavized / Stainless Steel |
| Sleeve & Flanges |
Ductile Iron To BS EN 1563 Gr. 500/7 |
| Nut |
Hot-Dip Galnavized / Stainless Steel |
| Washer |
Hot-Dip Galnavized / Stainless Steel |

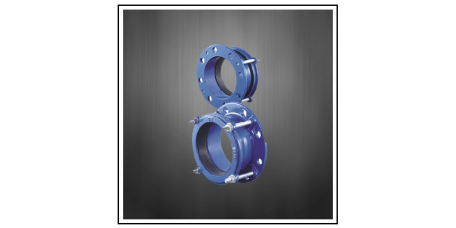

TEK Ductile Iron Flange Adaptor
- ---
