- Diameter Range : DN50 - DN600
- Specification : BS EN 12334 : 2001
- Features : Removable Cover On Top of Valve Body Casing for Easy Maintenance of The Door
- Coating : High Solid Epoxy Coating as Standard, Other Coating Upon Request
- Maximum Working Pressure : BSEN1092 PN16, Other Standard Upon Request
| DN | L | D |
| 50 | 203 | 165 |
| 80 | 241 | 200 |
| 100 | 292 | 220 |
| 150 | 356 | 285 |
| 200 | 495 | 340 |
| 250 | 622 | 405 |
| 300 | 698 | 460 |
| 350 | 787 | 520 |
| 400 | 914 | 580 |
| 450 | 978 | 640 |
| 500 | 978 | 715 |
| 600 | 1295 | 840 |
| No | Description | Material |
| 1 | Body |
Ductile Iron, BS EN 1563 Grade 500/7 |
| 2 | Cap Bolt |
Stainless Steel / HDG |
| 3 | Gasket |
EPDM BS 2494 Type W/MS 672 : 99 |
| 4 | Bonnet |
Ductile Iron, BS EN 1563 Grade 500/7 |
| 5 | Disc |
EPDM BS 2494 Type W/MS 672 : 99 |
**No. referring to the thumbnail image above.

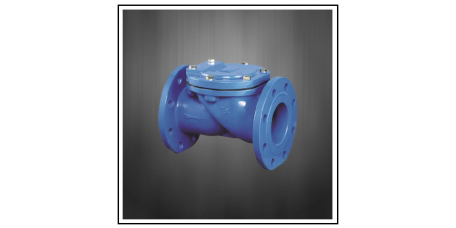

TEK Check Valve
- Double Flange Ductile Iron PN16 Swing Check Valve
